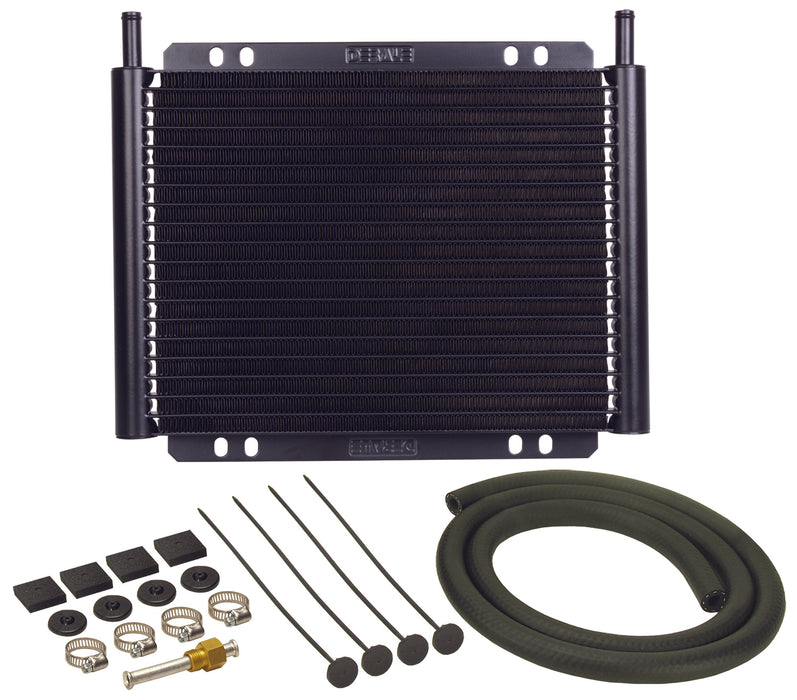

Derale Performance (711) 13503 18 Row Series 8000 Plate & Fin Transmission Cooler Kit

by Derale Performance (711)

MPN: 13503
SKU: 13503-S03B-711

$160.39 - $160.39

$160.39

$160.39 - $160.39

$160.39

Warehouse: Barrie-A

This product ships from the Barrie-A warehouse. No order minimum.

No pickups from warehouse at this time. Carrier shipping available.

Availability:

Only 1 left!

A step up from Tube & Fin type coolers, this Plate and Fin cooler features strong furnace-brazed construction, 7/8" wide plates, 3/4" embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for medium to full-size cars and intermediate SUVs that see light to medium duty use and some towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.

Specifications: Cooler style: Plate & Fin. Construction: Aluminum. Inlet size: 11/32" barb. BTU: 20000. GVW: 20500. Width: 11". Height: 9-1/4". Depth: 7/8". Inlet dim: 10-1/4". Mounting: 6-3/4" x 8". Hose size: 11/32". Fluid Capacity: 5.5 oz.
Features: Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer. Improves transmission performance. Sturdy furnace-brazed aluminum construction. All Derale coolers are rated at 250psi working pressure and 300psi burst strength. 18 row cooler design. 3/4" embossed turbulators maximize cooling & minimize pressure drop. BTU: 20000. GVW: 20500. Hose length: 4'. Complete hardware kit included.

MPN: 13503
