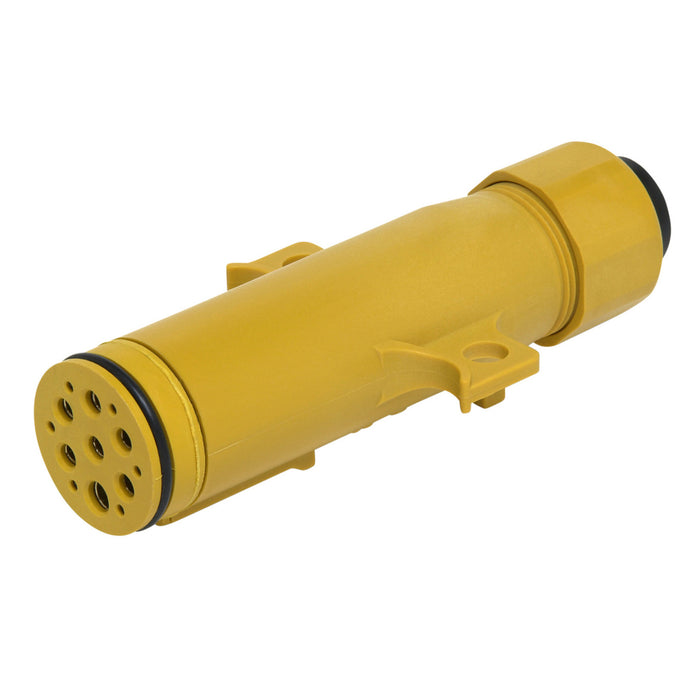

Cole Hersee 12301-BX 13 POLE TRAILER CONNECTOR

Provides six additional tractor-trailer circuits within the dimensions of traditional 7-pole connectors! Adaptable to a wide variety of wiring combinations. including multiplexed circuits. Surpasses SAE J560b performance standards. Conforms to this standard for interchangeability between 7-pole and 13-pole connectors. Distinctive bright yellow identifies 13-pole connectors. Robust glass-filled plastic housings cannot rust or corrode. Ground terminals accept up to 8AWG wire. 7 pole terminals up to 10AWG. smaller 6 pole terminals up to 14AWG. Gasket-sealed socket door is spring-loaded and locks onto the plug. Solid brass contact pins. Rain hood extends beyond the pins to protect the interior. The 5° downward pitch drain channel inside the socket reduces water retention. Three mounting holes on the flange: .33" (8.4mm) diameter. 2.93" (74.6mm) on centers. Includes six 31784 crimp-on connectors to mate with the six smaller pole terminals.
