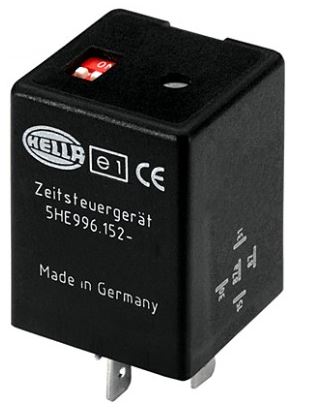

Hella (526) 996152131 Hella Time Relay - 12V - Number of connectors: 5 - Changeover Contact - ECE

by Hella (526)

MPN: 996152131
SKU: 996152131-S03B-526

$115.26 - $115.26

$115.26

$115.26 - $115.26

$115.26

Warehouse: Barrie-A

This product ships from the Barrie-A warehouse. No order minimum.

No pickups from warehouse at this time. Carrier shipping available.

Availability:

10 in stock, ready to be shipped

Temperature range from: -25°C - Temperature range to: 80°C - Adjustment range from: 0s - Adjustment range to: 900s. Registration Type: ECE. Switch-off delay. HELLA produces more than 100 million units per year in its own production facilities. OE quality: versatile and reliable. Rated load, rated switching current: Up to 20 A, normally open contact: Up to 10 A, normally closed contact

For a variety of technical applications, it is necessary to switch loads on or off with a delay. Applications Time control units drop-out delayed: Headlight cleaning, rear window heating, radiator fan run-on, timer etc. Applications Timer delayed start: Compressor air conditioning, delayed start motors, bus doors, etc. Delay manually adjustable. Delay time: 0 - 900 sec. Holder included in scope of delivery. Type approval according to Directive 95/54/EC (e1). Temperature resistance: -25 °C to +80 °C.

MPN: 996152131
