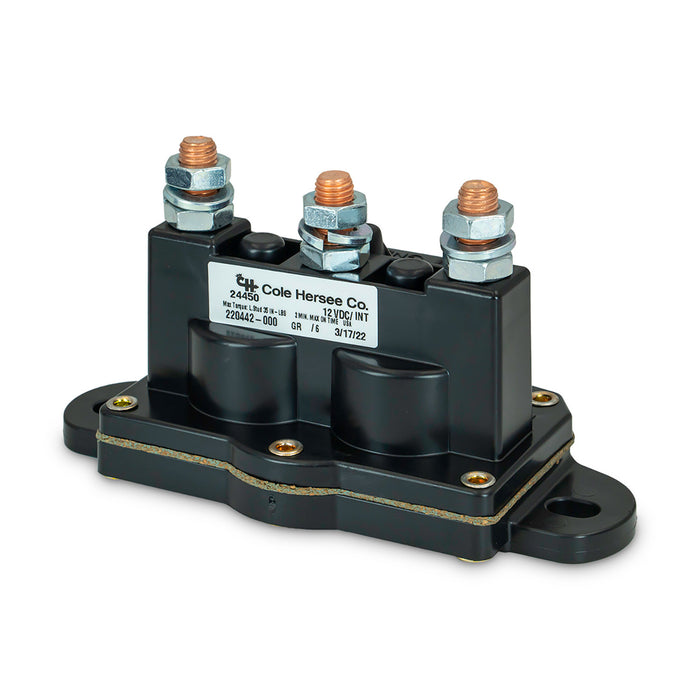

Cole Hersee 24450-BX REVERSING SOLENOIDS SERIES

by Cole Hersee

MPN: 24450-BX
SKU: 24450-BX-S03-163

$166.10 - $166.10

$166.10

$180.29

$180.29 - $180.29

$180.29

Warehouse: Calgary-A

This product is held in stock at the Calgary-A warehouse. Shipping & pick-up available.

Order now and pick up Tomorrow after 2 p.m.

5935 35 St SE, Bay #15, Calgary, AB, T2C 2H1, Canada

Availability:

12 in stock, ready to be shipped

Cole Hersee (163) (163) REVERSING SOLENOIDS SERIES A combination of two solenoids in one package to reduce cost and maximize space savings while also providing simpler wiring. Two integral solenoids provide dynamic braking for permanent magnet motors, when neither coil is energized. This intermittent duty solenoid can be used at a variety of amperages. Voltage: 12. Amps: Make: 75 A (5 mins on, 5 min off), 125 A (30 sec on, 5 min off), 150 A (0.5 sec on, 5 min off), Break: 75, 125, 150 A. Circuitry: Double-Pole, Double-Throw (DPDT). Contact Materials: Copper. Contact Stud Threads: 5/16"-24 Threads hex nuts and lock washers included. Contact Stud Material: Copper. Coil Terminals: Blade.

MPN: 24450-BX
