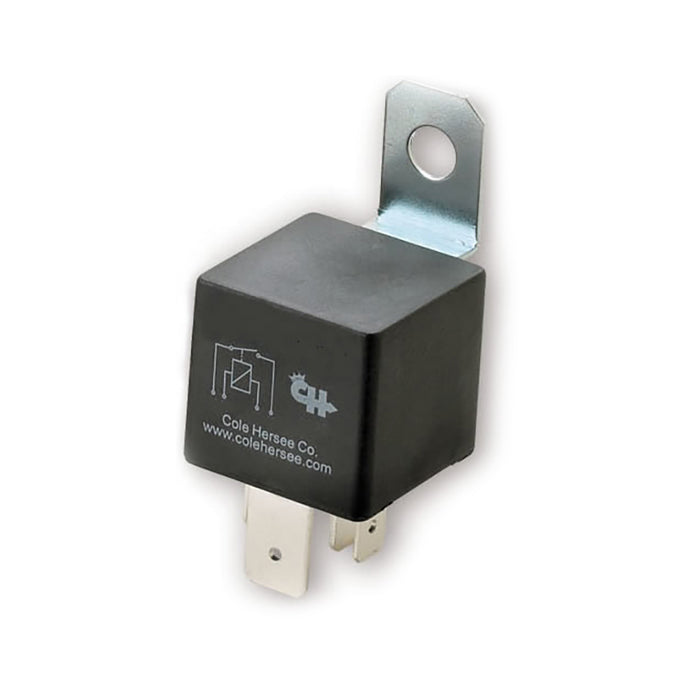

Cole Hersee RC-200124-RN-BX ISO MINI RELAYS SERIES

Our ISO Mini Relays are compact, modular, general-purpose relays that allow you to tailor your vehicle's hard-wired box for the capability you need, including lighting, starting, horn, heating and cooling, or fan control. Adhering to the ISO Mini form factor, these relays plug into existing, standard ISO Mini boxes along with fuses or other components (sold separately). This configuration (RC-200124-RN-BX) is an individually boxed Form C ISO Mini relay with single-pole, double-throw (SPDT) circuitry. It features a 24 V dc insulated coil with resistor suppression and a 20 A continuous current rating. This model also comes with a bracket for panel mounting. Features and Benefits: Form C Mini relay with SPDT circuitry. Rated for 24 V dc (36 V max). N.O. 20 A / N.C. 15 A continuous current rating. Insulated coil with resistor suppression. IP40 rating means the relay is protected against solid objects greater than 1.0 mm. Bracket included for panel mounting. Individually boxed.
