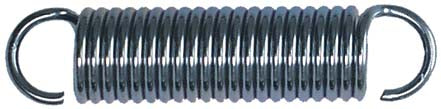

Dynaline (378) 24103 Extension Spring C-103 - 2/pkg, 2-1/2 L x 1/8 OD x .018 Wire

by Dynaline (378)

MPN: 24103
SKU: 24103-S03B-378

Sold out

$4.44 - $4.44

$4.44

$4.46

$4.46 - $4.46

$4.46

Warehouse: Barrie-A

This product ships from the Barrie-A warehouse. No order minimum.

No pickups from warehouse at this time. Carrier shipping available.

Availability:

Out of stock

S.A.E. 1060-1090 spring steel. Phosphate and oil finish. Retail package with UPC barcode label. Reference Number: C-103, Wire Diameter: 0.018”, Outside Diameter: 0.125”, Overall Length: 2.5”, Body Length: 2.25”, Maximum Stretch: 2.2”, Load Rate: 0.96 lbs./in, Max Load: 2.5 lbs., End Type: loop, Type Loop: B, Package Quantity: 2 Material: S.A.E. 1060-1090 spring steel. Finish: Phosphate and oil finish. Quantity: 2. Overall Length: 2.5”. Body Length: 2.25”. Type: loop. Wire Diameter: 0.018”. Detail Type: B. Size: 2.2”. Load Rating: 0.96 lbs./in. Reference Number: C-103. Outside Diameter: 0.125”. Capacity: 2.5 lbs.

Extension Spring C-103

MPN: 24103
