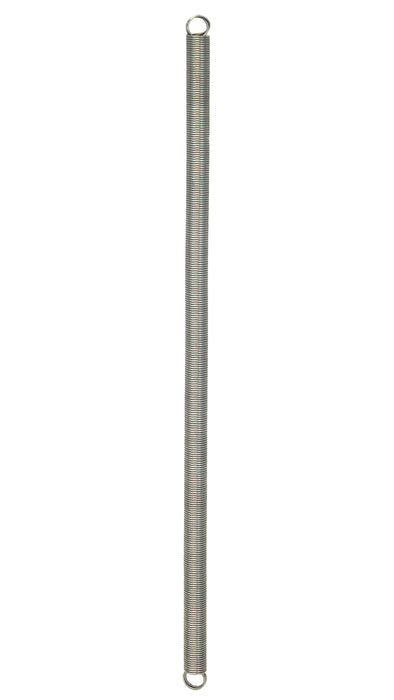

Dynaline (378) 24253 Extension Spring C-253, 16-1/2 L x 9/16 OD x .054 Wire

by Dynaline (378)

MPN: 24253
SKU: 24253-S03B-378

$11.29 - $11.29

$11.29

$11.32

$11.32 - $11.32

$11.32

Warehouse: Barrie-A

This product ships from the Barrie-A warehouse. No order minimum.

No pickups from warehouse at this time. Carrier shipping available.

Availability:

Only 3 left!

S.A.E. 1060-1090 spring steel. Phosphate and oil finish. Retail package with UPC barcode label. Reference Number: C-253, Wire Diameter: 0.054”, Outside Diameter: 0.562”, Overall Length: 16.5”, Body Length: 15.375”, Maximum Stretch: 41.5”, Load Rate: 0.32 lbs./in, Max Load: 9.2 lbs., End Type: DBL loop closed, Type Loop: E, Package Quantity: 1 Material: S.A.E. 1060-1090 spring steel. Finish: Phosphate and oil finish. Quantity: 1. Overall Length: 16.5”. Body Length: 15.375”. Type: DBL loop closed. Wire Diameter: 0.054”. Detail Type: E. Size: 41.5”. Load Rating: 0.32 lbs./in. Reference Number: C-253. Outside Diameter: 0.562”. Capacity: 9.2 lbs.

Extension Spring C-253

MPN: 24253
