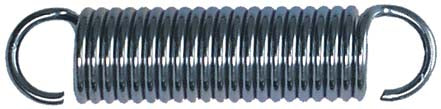

Dynaline (378) 24193 Extension Spring C-193 - 2/pkg, 4 L x 3/8 OD x .035 Wire

by Dynaline (378)

MPN: 24193
SKU: 24193-S03B-378

Sold out

$7.52 - $7.52

$7.52

$7.53

$7.53 - $7.53

$7.53

Warehouse: Barrie-A

This product ships from the Barrie-A warehouse. No order minimum.

No pickups from warehouse at this time. Carrier shipping available.

Availability:

Out of stock

S.A.E. 1060-1090 spring steel. Phosphate and oil finish. Retail package with UPC barcode label. Reference Number: C-193, Wire Diameter: 0.035”, Outside Diameter: 0.375”, Overall Length: 4”, Body Length: 3.25”, Maximum Stretch: 11.3”, Load Rate: 0.47 lbs./in, Max Load: 3.9 lbs., End Type: loop, Type Loop: B, Package Quantity: 2 Material: S.A.E. 1060-1090 spring steel. Finish: Phosphate and oil finish. Quantity: 2. Overall Length: 4”. Body Length: 3.25”. Type: loop. Wire Diameter: 0.035”. Detail Type: B. Size: 11.3”. Load Rating: 0.47 lbs./in. Reference Number: C-193. Outside Diameter: 0.375”. Capacity: 3.9 lbs.

Extension Spring C-193

MPN: 24193
