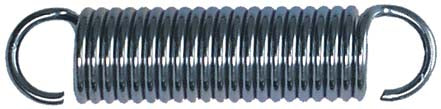

Dynaline (378) 24083 Extension Spring C-83 - 2/pkg, 1-7/8 L x 7/16 OD x .047 Wire

by Dynaline (378)

MPN: 24083
SKU: 24083-S03B-378

$4.44 - $4.44

$4.44

$4.46

$4.46 - $4.46

$4.46

Warehouse: Barrie-A

This product ships from the Barrie-A warehouse. No order minimum.

No pickups from warehouse at this time. Carrier shipping available.

Availability:

12 in stock, ready to be shipped

S.A.E. 1060-1090 spring steel. Phosphate and oil finish. Retail package with UPC barcode label. Reference Number: C-83, Wire Diameter: 0.047”, Outside Diameter: 0.437”, Overall Length: 1.875”, Body Length: 1”, Maximum Stretch: 2.3”, Load Rate: 4.3 lbs./in, Max Load: 11 lbs., End Type: loop, Type Loop: B, Package Quantity: 2 Material: S.A.E. 1060-1090 spring steel. Finish: Phosphate and oil finish. Quantity: 2. Overall Length: 1.875”. Body Length: 1”. Type: loop. Wire Diameter: 0.047”. Detail Type: B. Size: 2.3”. Load Rating: 4.3 lbs./in. Reference Number: C-83. Outside Diameter: 0.437”. Capacity: 11 lbs.

Extension Spring C-83

MPN: 24083
