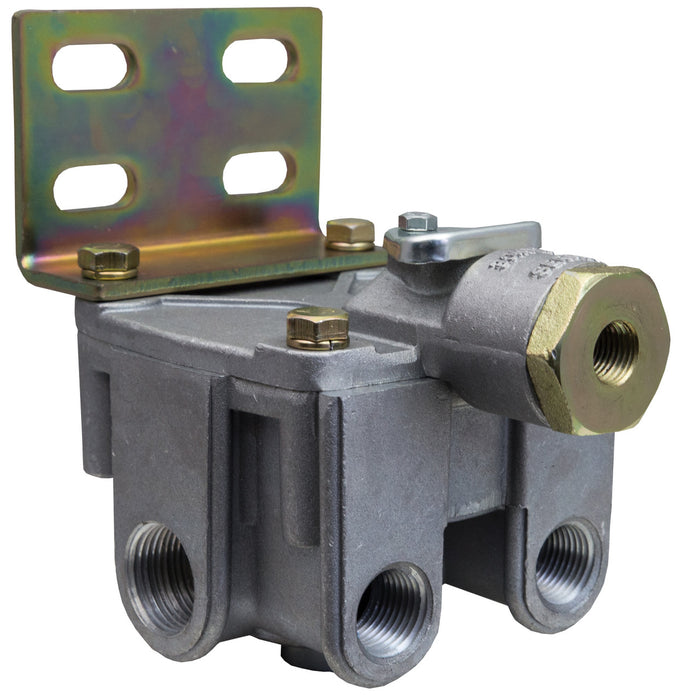

Tectran TV103010 RELAY VALVE-MODEL 14 HOR DEL

by Tectran

MPN: TV103010
SKU: TV103010-S03-667

$63.24 - $63.24

$63.24

$63.38

$63.38 - $63.38

$63.38

Warehouse: Calgary-A

This product is held in stock at the Calgary-A warehouse. Shipping & pick-up available.

Order within 4h 1m and pick up today after 2 p.m.

5935 35 St SE, Bay #15, Calgary, AB, T2C 2H1, Canada

Availability:

4 in stock, ready to be shipped

Introducing Tectran's Relay Valves - Model 14 -Versatile Functionality: Tectran's Model 14 relay valves are similar to Model 12 relay valves but come with an optional extra port to prevent compounding* for added versatility -Easy Installation: Each valve comes with a metal unmounted bracket, ensuring easy and secure installation -Precise Control: These relay valves have a crack pressure of 4 psi, allowing for precise control of your air system Upgrade your air system with Tectran's Relay Valves - Model 14, designed to provide versatile functionality and precise control to enhance your air brake system's performance.

Specifications:- Supply Port - 3/4”|Delivery Ports - (2) 1/2” horizontal|Control Ports - 1/4”|Balance Ports - 1/8”. Similar to Model 12 relay valves with an optional extra port to prevent compounding. Metal unmounted bracket provided with all valves. Crack pressure 4 psi. Bracket included.
Cross References- Fleetspec Part- FS103010N|Sloan Part-401169|Velvac Part-034027
Interchanges Manufacturer's Part No.: 034027, 103010, 103010P, 103010RX, 14398, 170103010, 401169, FS103010N, GTA-103010, H103010

MPN: TV103010
