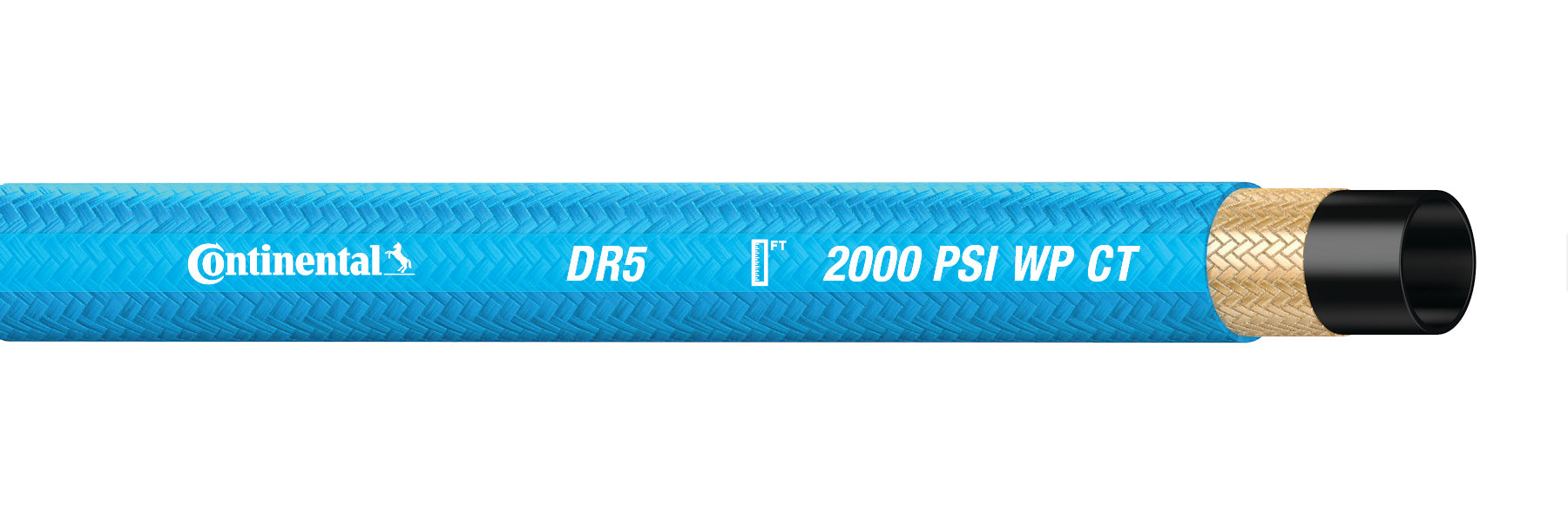

Continental Hydraulic (510) DR5-20X50BX DR5 1-1/8" 100R5 High Temp Hose 50 FT

by Continental Hydraulic (510)

MPN: DR5-20X50BX
SKU: DR5-20X50BX-S03B-510

Sold out

$21.54 - $21.54

$21.54

$21.54 - $21.54

$21.54

Warehouse: Barrie-A

This product ships from the Barrie-A warehouse. No order minimum.

No pickups from warehouse at this time. Carrier shipping available.

Availability:

Out of stock

Desert® DR5 is a high-temperature, medium-pressure hose for use in applications including turbocharger oil lines, tilt cab cylinder and air brake lines, transmission coolant and filtration lines. It is compatible with petroleum oil and phosphate ester–based hydraulic fluids, air, water, diesel fuel, petroleum-based lubricating oils and coolants.

Outer: Blue Impregnated Textile Braid. Inner: Chlorinated Polyethylene
Reinforcement: 1 Layer; Braided; Steel Wire
Maximum Working Pressure: 625 PSI. Minimum Burst Pressure: 2500 PSI
Specifications: SAE 100R5 DOT FMVSS 106 Type AII SAE J1402 Type AII
Temperature Range: SAE 100R5 hydraulic applications: -40°C to 150°C, Air brake and general air applications: -40°C to 93°C, General hot oil applications: -40°C to 150°C, Water applications: -40°C to 100°C / SAE 100R5 hydraulic applications: -40°F to 302°F, Air brake and general air applications: -40°F to 200°F, General hot oil applications: -40°F to 302°F, Water applications: -40°F to 212°F

MPN: DR5-20X50BX
