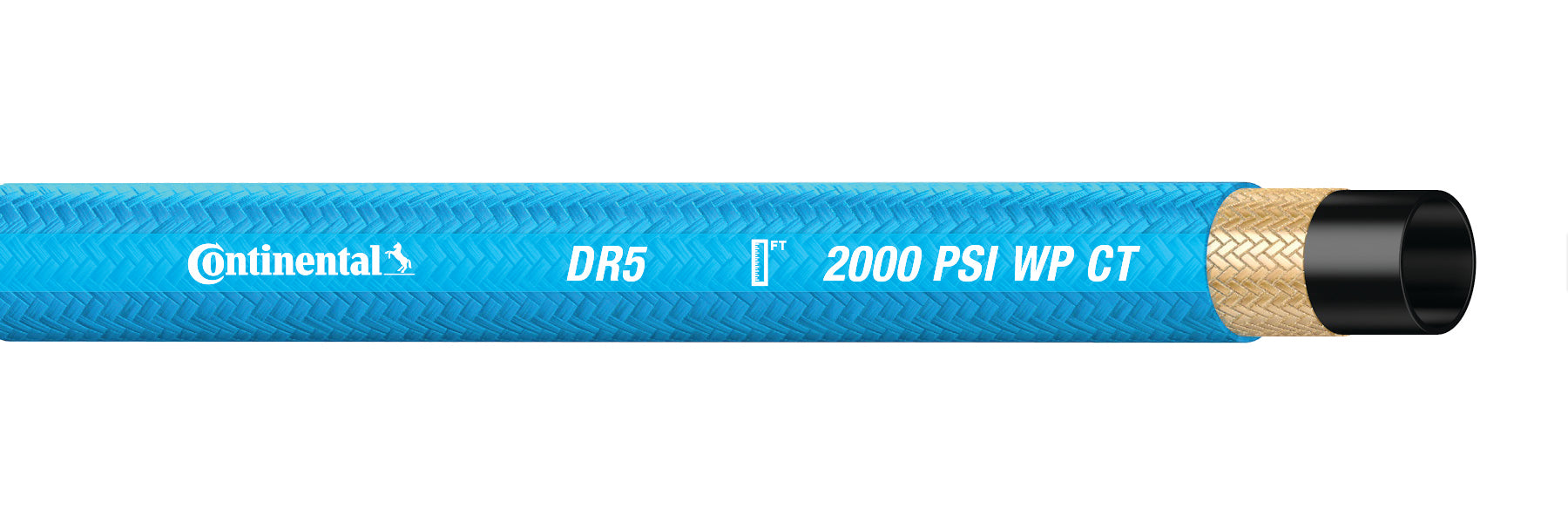

Continental Hydraulic DR5-20X50BX DR5 1-1/8" 100R5 High Temp Hose 50 FT

by Continental Hydraulic

MPN: DR5-20X50BX
SKU: DR5-20X50BX-S03-510

Save 43%

$37.94

$37.94 - $37.94

$37.94

$21.54

$21.54 - $21.54

$21.54

Warehouse: Calgary-A

This product is held in stock at the Calgary-A warehouse. Shipping & pick-up available.

Order within 1h 32m and pick up today after 2 p.m.

5935 35 St SE, Bay #15, Calgary, AB, T2C 2H1, Canada

Availability:

100 in stock, ready to be shipped

Desert® DR5 is a high-temperature, medium-pressure hose for use in applications including turbocharger oil lines, tilt cab cylinder and air brake lines, transmission coolant and filtration lines. It is compatible with petroleum oil and phosphate ester–based hydraulic fluids, air, water, diesel fuel, petroleum-based lubricating oils and coolants.

Outer: Blue Impregnated Textile Braid. Inner: Chlorinated Polyethylene
Reinforcement: 1 Layer; Braided; Steel Wire
Maximum Working Pressure: 625 PSI. Minimum Burst Pressure: 2500 PSI
Specifications: SAE 100R5 DOT FMVSS 106 Type AII SAE J1402 Type AII
Temperature Range: SAE 100R5 hydraulic applications: -40°C to 150°C, Air brake and general air applications: -40°C to 93°C, General hot oil applications: -40°C to 150°C, Water applications: -40°C to 100°C / SAE 100R5 hydraulic applications: -40°F to 302°F, Air brake and general air applications: -40°F to 200°F, General hot oil applications: -40°F to 302°F, Water applications: -40°F to 212°F

MPN: DR5-20X50BX
