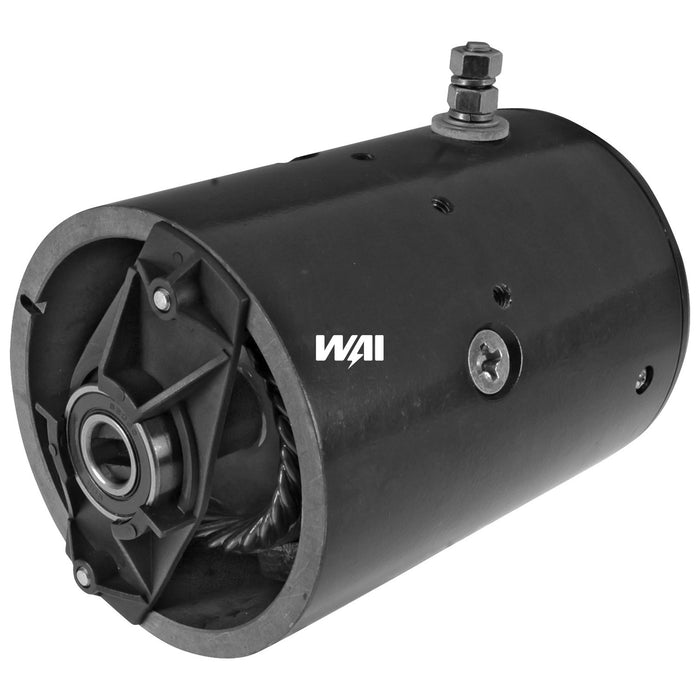

WAI (126) 10752N 082850 - Complete Motor

by WAI (126)

MPN: 10752N
SKU: 10752N-S03B-126

Sold out

$273.13 - $273.13

$273.13

$273.13 - $273.13

$273.13

Warehouse: Barrie-A

This product ships from the Barrie-A warehouse. No order minimum.

No pickups from warehouse at this time. Carrier shipping available.

Availability:

Out of stock

12 Volt, CCW, Slotted Shaft. SPECS FOR: Pump. DESIGN: PUMP. VOLTAGE: 12. ROTATION: CCW. SHAFT TYPE: SLOTTED. CASE DIA: 4.5 INCH. NOTE 1: Thru bolts at 5: 00 & 11: 00 positions. NOTE 2: Additional 1/4-20 switch mtg. holes in field case for broader coverage. NOTE 3: For single ball bearing vesion use 10751N. DIM 1: 1) 5/16-24 Terminal Post. 100% New. 2-field coils, high RPM motor. Double ball bearings.

Applications:
OE Numbers: Bosch 9 130 450 081, JS Barnes 2200-478, 2200-727, 2200-776, 2200-820, 2200-849, 2200478, 2200727, 2200776, 2200820, 2200849, MTE Hydraulics 39200292, 39200380, 39200388, 39200443, 39200467, Original Reference Number 016579, 3922003, Prestolite 46-2624, 46-3620, 46-4057, MUE6201, MUE6301, MUE7004, MUE7006, Venturo Venco MTE39200292, Wapsa 9130450061, 9130450064, 9130450081
Lester Numbers: 10751, 10752, 10784

MPN: 10752N
