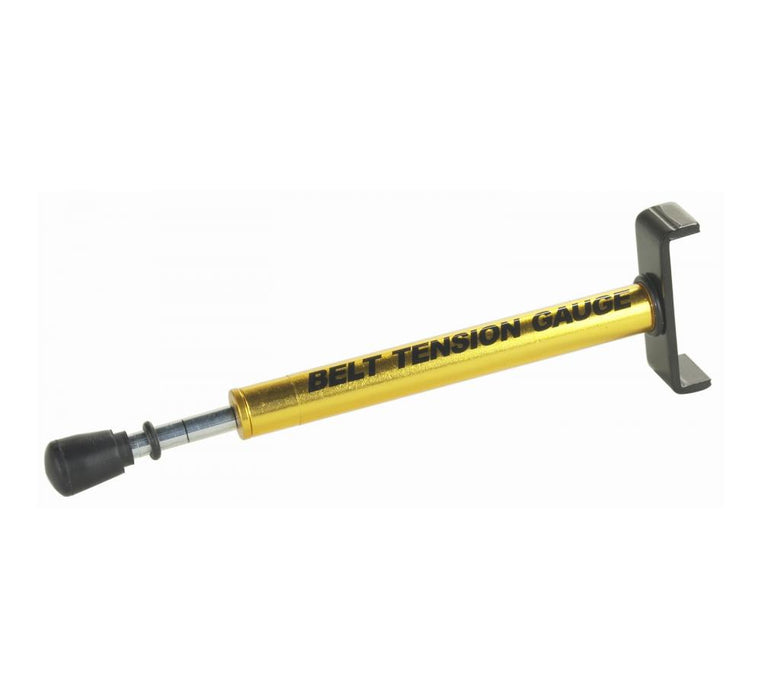

OTC/Bosch 4748 BELT TENSION GAUGE

by OTC/Bosch

MPN: 4748
SKU: 4748-S03-142

Sold out

$54.54 - $54.54

$54.54

$59.20

$59.20 - $59.20

$59.20

Warehouse: Calgary-A

This product is held in stock at the Calgary-A warehouse. Shipping & pick-up available.

Order now and pick up Monday, January 26, 2026 after 2 p.m.

5935 35 St SE, Bay #15, Calgary, AB, T2C 2H1, Canada

Availability:

Out of stock

BELT TENSION GAUGE. This easy to use and read tool allows for accurate belt tension to be set after belt replacement, adjustment, or wheel service. Use on secondary drive belts with a 10 lb. spec. Instructions; 1. Position the small O-ring over the 10 lb. mark. 2. Position the U-shaped belt cradle against the bottom of the belt at a 90 degree angle and locate the large O-ring to a reference point, record reading. 3. Push upward on the rubber bumper until the small O-ring touches the bottom of the tool body. Re-align the large O-ring to the reference point, difference in the reading is the belt deflection (refer to service manual for spec.).

MPN: 4748
