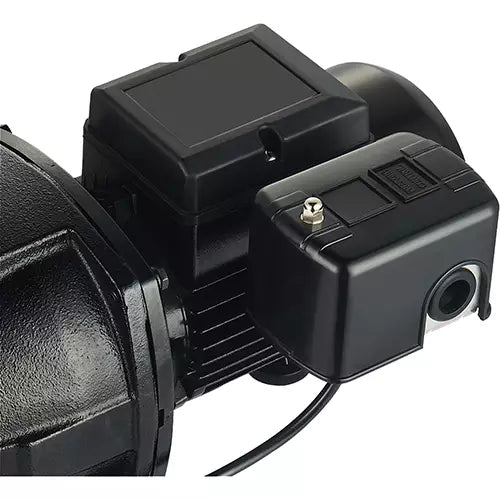

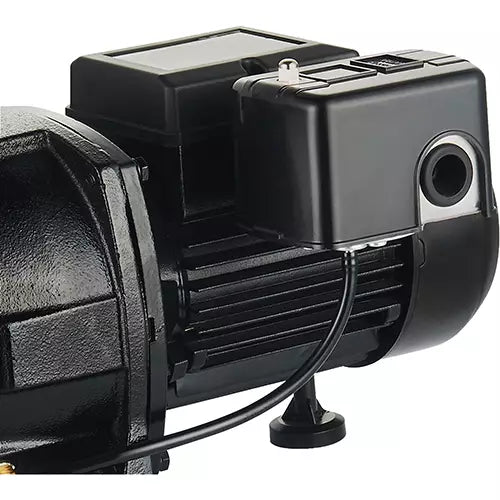

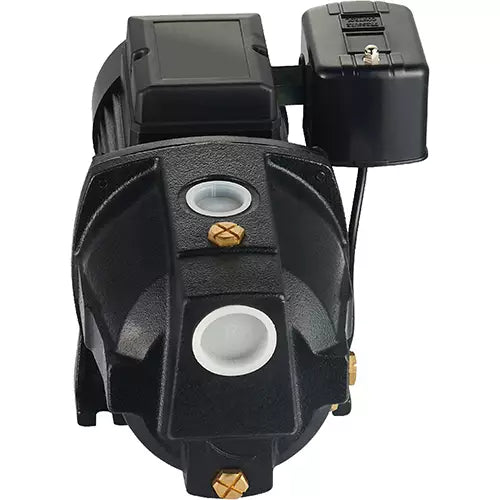

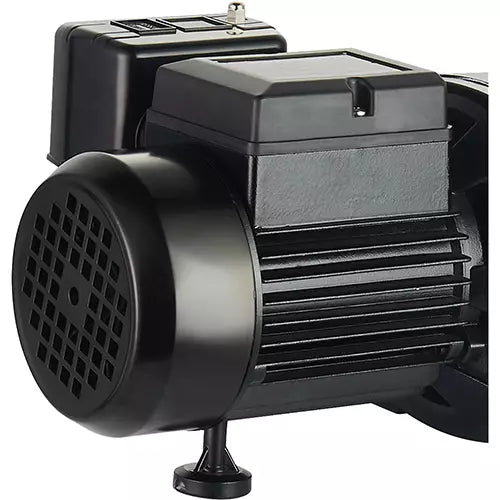

Dual Voltage Cast Iron Shallow Well Jet Pump - UJM100-1

MPN: UJM100-1

• Durable cast iron pump body
• Built-in automatic thermal overload protection
• Pressure switch pre-set at 30-50 PSI
• For use with shallow well within 25'
• Dual voltage motor (115/230V), factory wired for 115V

Specifications

Motor

1 HP

Max. Flow Rate

1100 GPH

Voltage

115 V/230 V

Suction Head

164'

Manufacturer's Warranty

2 years

Discharge Diameter

1" NPT

Inlet Diameter

1-1/4"

Seal Design

Mechanical Seal

Seal Material

Graphite & Ceramic

Expected Life Cycle

On 2 sec. Off 2 sec. 300,000 cycles

Motor Wires

Copper

Certification

CSA

Amperage

9.6/4.8 A
