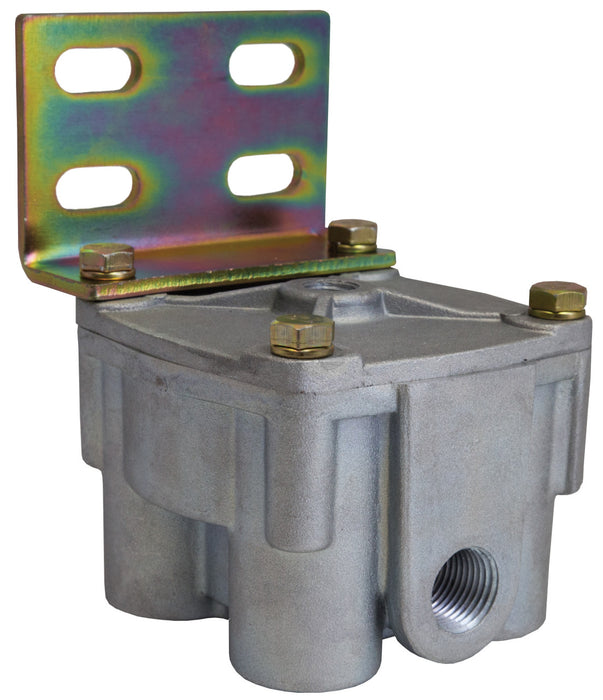

Tectran (667) TV103009 RELAY VALVE-MODEL 12 HOR DEL

by Tectran (667)

MPN: TV103009
SKU: TV103009-S03B-667

$58.65 - $58.65

$58.65

$58.65 - $58.65

$58.65

Warehouse: Barrie-A

This product ships from the Barrie-A warehouse. No order minimum.

No pickups from warehouse at this time. Carrier shipping available.

Availability:

Only 2 left!

Enhance Braking Efficiency with Tectran's Relay Valves - Model 12 -Improved Braking Response: Tectran's Relay Valves - Model 12 are engineered to optimize the response time of your air brake system, ensuring quick and precise brake application and release -Relay Station: These valves act as relay stations within your air brake system, facilitating the rapid transmission of air pressure to the brake chambers -Versatile Mounting: Designed for either reservoir or frame mounting, these relay valves offer flexibility in installation to suit your vehicle's specific needs Upgrade your vehicle's braking performance and safety with Tectran's Relay Valves - Model 12. These relay valves are built to deliver superior responsiveness, helping you maintain better control over your braking system.

Specifications:- Crack Pressure - 4 psi|Supply Port - 3/4”|Delivery Ports - (2) 1/2” horizontal|Control Ports - 1/4”. Application: The relay valve in an air brake system functions as a relay station to speed up the application and release of the brakes. The valve is normally mounted at the rear of the vehicle in proximity to the chambers it serves. The valve operates as a remote controlled brake valve that delivers or releases air to the chambers in response to the control air delivered to it from the foot brake valve or other source. The relay valve is designed for either reservoir or frame mounting
Cross References- Fleetspec Part- FS103009N|Sloan Part-401168|Velvac Part-034026
Interchanges Manufacturer's Part No.: 034026, 103009, 103009P, 103009RX, 103009X, 14397, 170103009, 401168, A86477, FS103009N, GTA-103009, H103009, KN28140

MPN: TV103009
