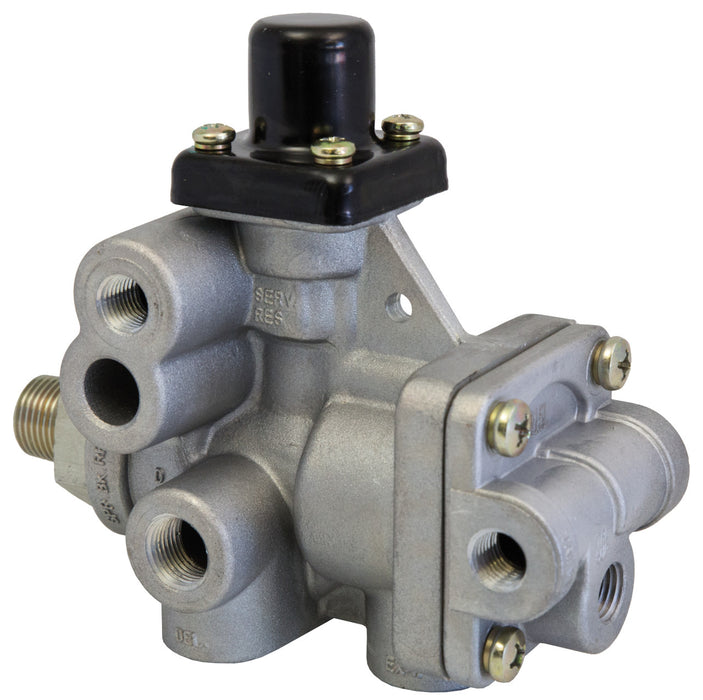

Tectran (667) TV065437 SPRING BRAKE VALVE-MODEL 5 3/4"
MPN:
TV065437
SKU:
TV065437-S03B-667
Original price
$85.14
-
Original price
$85.14
Original price
$85.14
$85.14
-
$85.14
Current price
$85.14
Availability:
Only 2 left!
Optimize Trailer Braking with Tectran's Trailer Spring Brake Valve - Model 5 -Tailored for Trailers: The Model 5 is a specialized trailer spring brake control valve, meticulously designed to enhance the braking performance of your trailer -Efficient Plumbing: Unlike some other models, the Model 5 simplifies your trailer's plumbing system while ensuring compliance with the latest version of FMVSS 121 (Docket 90-3, Notice 4) -Simplified Design: With the Model 5, you can control trailer spring brake release using trailer supply line pressure, eliminating the need for dedicated or isolated reservoir pressure as mandated by law -Adaptable Service Volume: Depending on your needs, a single reservoir can suffice for service volume on single-axle trailers, while tandem units may require two reservoirs to meet 121 service volume requirements Upgrade your trailer's braking system with Tectran's Trailer Spring Brake Valve - Model 5. Benefit from its tailored design, simplified plumbing, and compliance with FMVSS 121 regulations for safer and more efficient braking.
- Specifications:- Reservoir port - 3/4”. Application: The Model 5 is a trailer spring brake control valve. It mounts to a reservoir on the trailer and, like the Model 2 and Model 4, it controls the trailer spring brakes. The Model 5 is similar to the Model 2 and Model 4 but it allows for simpler trailer system plumbing while complying with the latest version of FMVSS 121 (Docket 90-3, Notice 4). However, unlike the Model 2 and Model 4, the Model 5 controls trailer spring brake release using trailer Supply Line pressure. Because dedicated or isolated reservoir pressure is no longer required by law for spring brake release, the Model 5 system needs only a one reservoir for service volume on single axle trailers. Two reservoirs are generally needed for 121 service volume requirements on tandem units.
- Cross References- Fleetspec Part- FS065437N|Velvac Part-034035
- Interchanges Manufacturer's Part No.: 034035, 14523, 170065437, FS065437N, HK033221
MPN: TV065437
