GPI 165100-02 M30-L8N 1-inch NPT, Litre Unit, Mechanical Fuel Meter

by GPI

MPN: 165100-02
SKU: 165100-02-S03-504

$491.19 - $491.19

$491.19

$533.18

$533.18 - $533.18

$533.18

Warehouse: Calgary-A

This product is held in stock at the Calgary-A warehouse. Shipping & pick-up available.

Order now and pick up Monday, December 22, 2025 after 2 p.m.

5935 35 St SE, Bay #15, Calgary, AB, T2C 2H1, Canada

Availability:

Only 2 left!

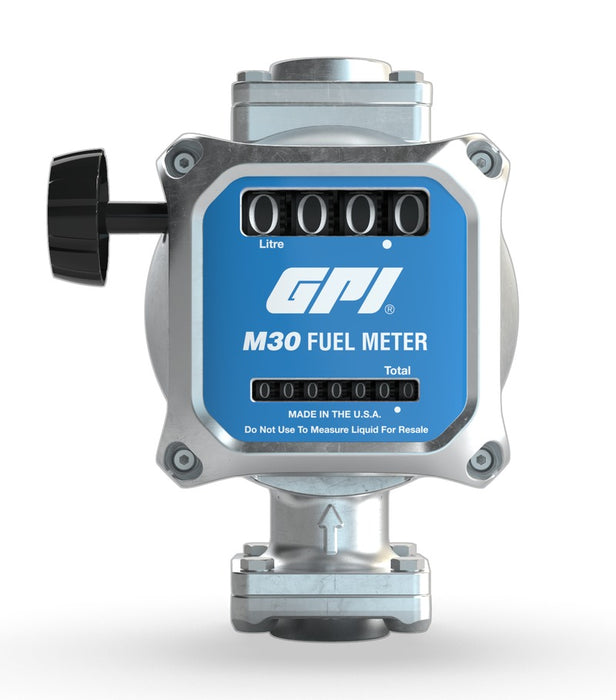

M30-L8N 1-inch NPT, Litre Unit, Mechanical Fuel Meter

This quick-fit modular fuel meter is easy to install, easy to use, and easy to maintain. It is designed for the field measurement of thin viscosity petroleum fuel only and intended for use with pump systems in the 5-30 GPM or 19 to 114 L/m flow range. Using mechanical gears, this meter translates flow data from a nutating disk into calibrated units which are indicated on the face of the meter. The M30 is equipped with both NPT and Flange connections which allows it to be installed on all threaded pump outlets or modular GPI products.

Easily attaches to the G20 fuel transfer pump
Features simple four-bolt connections that allow the meter to be mounted in multiple directions
Within a +/-2% accuracy across a flow range from 5 to 30 GPM or 19 to 114 L/min
Durable aluminum housing; magnetic drive replaces the driveshaft and seal, eliminating driveshaft leaks
Twist knob reset; batch total and cumulative total display

MPN: 165100-02
