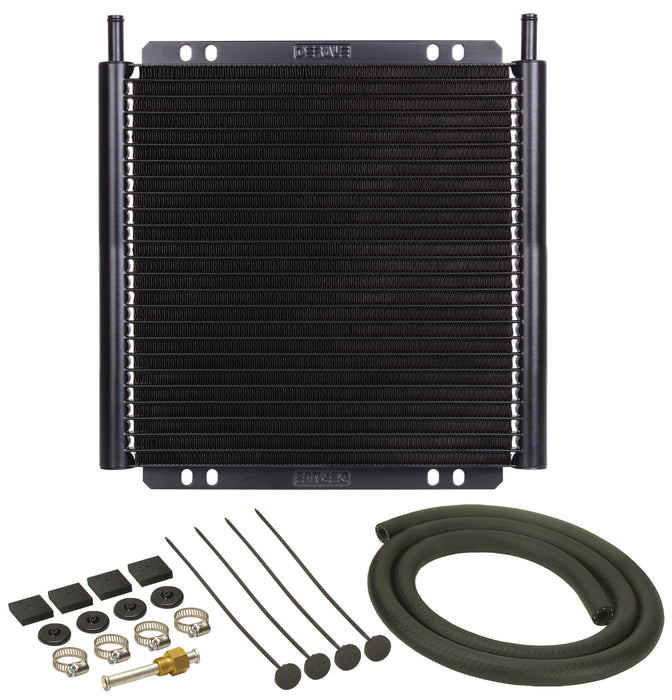

Derale Performance (711) 13504 24 Row Series 8000 Plate & Fin Transmission Cooler Kit

by Derale Performance (711)

MPN: 13504
SKU: 13504-S03B-711

$168.89 - $168.89

$168.89

$168.89 - $168.89

$168.89

Warehouse: Barrie-A

This product ships from the Barrie-A warehouse. No order minimum.

No pickups from warehouse at this time. Carrier shipping available.

Availability:

Only 3 left!

A step up from Tube & Fin type coolers, this Plate and Fin cooler features strong furnace-brazed construction, 7/8" wide plates, 3/4" embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for full size cars trucks and SUVs with medium to light-heavy duty use and consistent towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.

Features: Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer. Improves transmission performance. Sturdy furnace-brazed aluminum construction. All Derale coolers are rated at 250psi working pressure and 300psi burst strength. 24 row cooler design. 3/4" embossed turbulators maximize cooling & minimize pressure drop. 11/32" hose barb inlets. BTU: 23000. GVW: 22500. Complete hardware kit included. Fluid Capacity: 8 oz.
Specifications: Cooler style: Plate & Fin. Construction: Aluminum. Inlet size: 11/32" barb. BTU: 23000. GVW: 22500. Width: 11". Height: 12". Depth: 7/8". Inlet dim: 11-1/4". Mounting: 6-3/4" x 10-1/2". Hose size: 11/32". Hose length: 4'.

MPN: 13504
