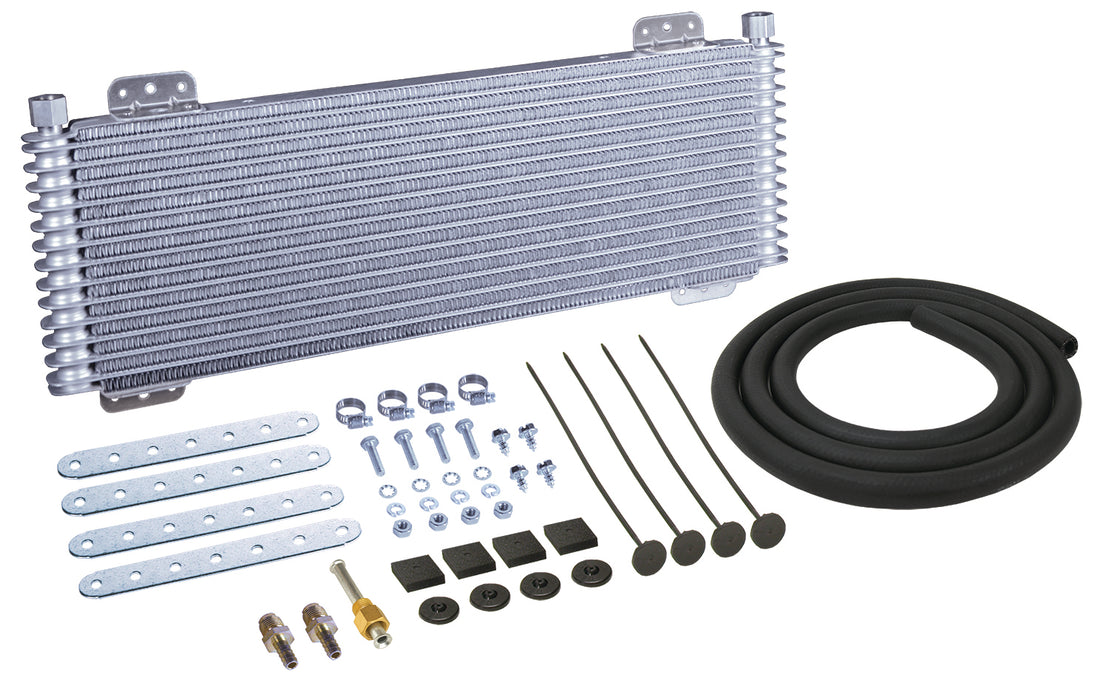

Derale Performance 13633 13 Row Series 9500 Plate & Fin Transmission Cooler Kit

by Derale Performance

MPN: 13633
SKU: 13633-S03-711

$232.24 - $232.24

$232.24

$232.70

$232.70 - $232.70

$232.70

Warehouse: Calgary-A

This product is held in stock at the Calgary-A warehouse. Shipping & pick-up available.

Order within 3h 20m and pick up today after 2 p.m.

5935 35 St SE, Bay #15, Calgary, AB, T2C 2H1, Canada

Availability:

Only 2 left!

Very popular with original equipment manufacturers for use on their towing applications, our Plate and Fin coolers feature strong furnace-brazed construction embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for light to medium duty use and occasional towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. Built with 5/8" Inverted Flare Inlets and includes 3/8" hose barb adapters. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.

Features: Prevents heat related transmission failures. Extends life of transmission. Improves transmission performance. Sturdy furnace-brazed aluminum construction. 13 row cooler design. Turbulators maximize cooling & minimize pressure drop. 3/8" hose barb adapters included. GVW: 34000. BTU: 33000. Fluid Capacity: 20 oz. All Derale coolers are rated at 250psi working pressure and 300psi burst strength.
Specifications: Cooler style: Plate & Fin. Construction: Aluminum. GVW: 34000. BTU: 33000. Inlet size: 5/8" inverted flare female inlets. Fitting size: 3/8" barb. Width: 22-3/4". Height: 8". Overall Height (with brackets and inlets): 9-1/4". Depth: 1-1/4". Inlet to Inlet dim: 21-3/8". Mounting: 15-3/4", 17-3/4", 8-1/2". Hose size: 3/8". Hose length: 4'.

MPN: 13633
