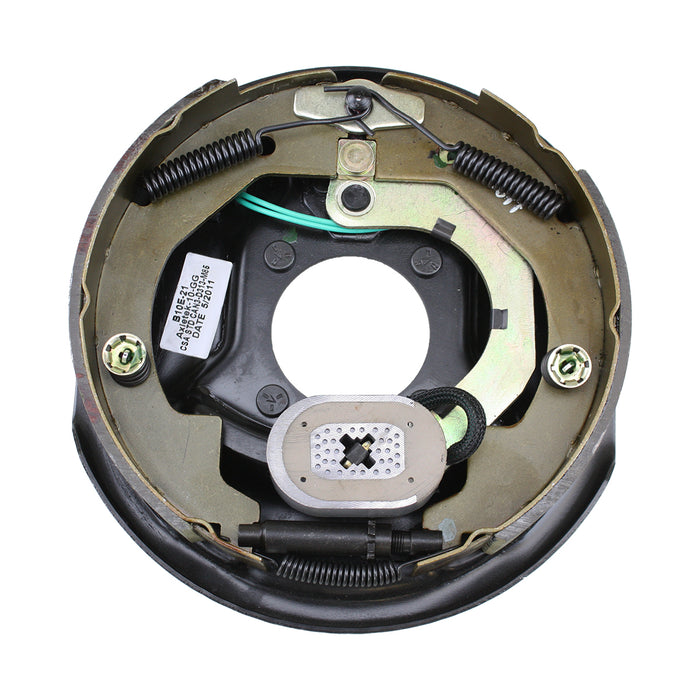

Lippert Components 298274 Lippert Electric Trailer Brake Assembly - 10" x 2.25" 3,500 lbs. Right Side
MPN 298274
Original price
$79.06
-
Original price
$79.06
Original price
$79.06
-
Original price
$79.06
Original price
Current price
$79.06
$79.06
-
$79.06
Current price
$79.06
Availability:
92 in stock, ready to be shipped
Lippert Components (744) (744)
Lippert Electric Trailer Brake Assembly - 10" x 2.25" 3,500 lbs. Right Side
Replacement standard electric brake assembly with park. Manual adjustment. Designed for right-hand (curb-side) installation only. For axles rated to 3,500 lbs. Four-bolt mounting pattern. For 13", 14", 14.5" or 15" wheels. Brake size: 10" x 2.25". New electric drum brakes will require a break-in period to achieve full performance
- This Lippert electric trailer brake assembly is a genuine replacement part for a wide variety of travel trailers, RVs and other trailer types. Electric brakes are easier to install than hydraulic brakes and provide reliable stopping power for you towing setup.
- This electric brake assembly is compatible with 13-15” wheels, made for 3,500-lb. axles, and goes on the right side of the trailer (curb side / passenger side).
- Weight Capacity: 3,500 lbs. Shock Compatible: No. Brake Type: Electric. Axle Brake Mounting Bolt Size: 7/16". Axle Capacity: 3,500 lbs. Brake Size: 10" x 2.25". Brake Flange Count: 4-Bolt. Side: Passenger (Right)
- Four bolt mounting pattern
- Replaces: Dexter K23-027-00 | Cross references are not a guarantee that the part will fit any specific application. Check all information available before relying on a cross reference to make a purchase.
Specifications
- Height
- 3.0"
- Length
- 11.0"
- Width
- 11.0"
