Replacement Spring Brakes Release Stud for 30/30 Standard or Long Stroke.

Mounting Holes 0.27" diameter hole. Port Fittings 1/4" PT. Replaces Bendix 5000360.

ST-4 style Safety Valve, 200 PSI, New.

Bendix MV-3 style Control MODULE, New Delivery Ports Push-to-Connect. Exhaust Port Push-to-Connect. Mounting Holes M5 x 8.0 -6H.

Port Size 1/4" PT Inlet & Outlet.

Port Size 1/2" PT Inlet & Outlet.

Ad-Ip Ad-Is Bendix Style. Replaces Bendix K022105.

12V Ad9 Soft Seat Purge Valve

Cracks @ 4 PSI. Delivery Ports (2) 1/2" PT Horizontal ports (2) 3/8" PT Vertical ports. Supply Ports (2) 1/2" PT.

Thread 7/8-14. Application Used for Kenworth and Peterbilt models.

Bendix PP-DC style PARK CONTROL Valve, New Mounting Holes 0.27" diameter hole. Port Fittings 90° Push-to-Connect.

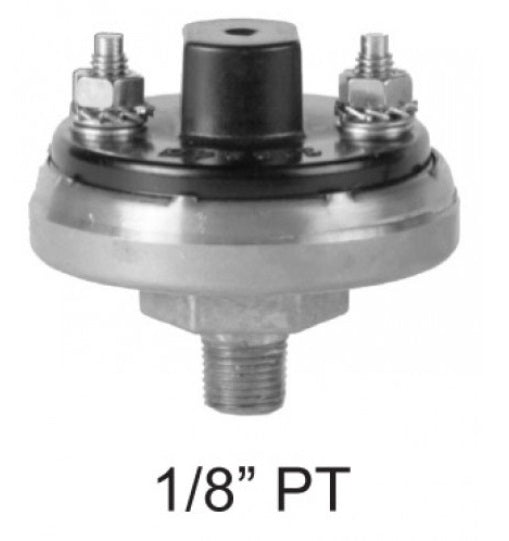

Replaces Midland BE13240. Notes: Actuates at 55 PSI. Normally Closed at 0 PSI. Single pole, 2 terminals. 12 or 24 Volt operation.

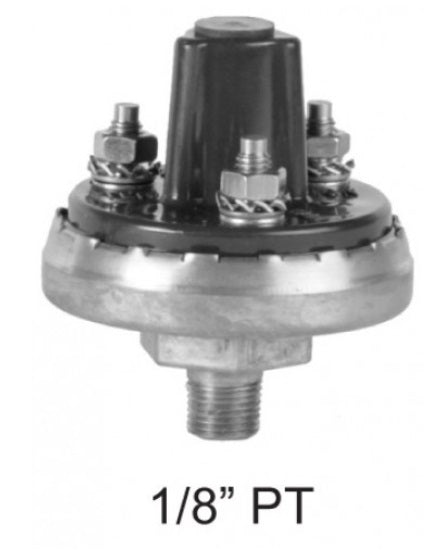

Replaces Midland BE13255. Notes: Actuates at 55 PSI. One side Open at 0 PSI, other side Closed. Single pole, double throw, 3 terminals. 12 or 24 Vo...

Bendix SR-7 style SPRING BRAKE Valve, New Balance Port 3/8" Push-to-Connect, Straight Fitting. Control Port 3/8" Push-to-Connect, Straight Fitting...

Balance Port 3/8" Push-to-Connect, 90° Fitting. Control Port 3/8" Push-to-Connect, 90° Fitting. Mounting Stud M10 Thread, 1-3/8" Long.

AD-IS / AD-IP style PURGE Valve, New Notes: NOT for use with AD-IS® / AD-IP® EverFlow® Air Dryer Modules, or AD-IP® Drop-In Air Dryer.

Fitting Size 1/2" PT. Replaces Midland KN23000 FleetSpec FS-11210.

2 Delivery RELAY Valve, Haldex style, New.

Cracks @ 6.0 PSI. Delivery Ports 3/8" PT. Reservoir Port Both "A" and "B" are 3/8" PT.

Cracks @ 3 PSI. Reservoir Nipple 3/4" PT.

Aux Reservoir Port 1/2" PT. Cracks @ 4.5 PSI. Delivery Ports (4) 3/8" PT. Reservoir Port Plugged. Service & Emergency 3/8" PT. Notes: This valv...

Replaces Midland KN68230. Notes: Normally Closed. Exhaust is under the white plastic cover. Both ports are 1/4" PT. Operates the shift mechanism of...

N/C RELAY Valve, Williams style, New Operation N/C, Reopens @ 15 to 30 PSI. Ports "A" 1/4" PT control "B" 1/8" PT Exhaust. Replaces Williams 111527.

N/O RELAY Valve, Williams style, New Operation Closes @ 10 to 30 PSI, Reopens @ 5 to 10 PSI. Ports "A" 1/4" PT Exhaust "B" 1/8" PT Control. Repla...

Greaseable Clevis Pins. Improves serviceability of Spring Brake Clevises, for longer Slack Adjuster Bushing life, and ease of maintenance. 1/2 x 1-...

Improves serviceability of Spring Brake Clevises, for longer Slack Adjuster Bushing life, and ease of maintenance.

Length "L" 1-1/2". Improves serviceability of Spring Brake Clevises, for longer Slack Adjuster Bushing life, and ease of maintenance.

Port Size 1/2" PT Male.

Port Size 1/8" PT. Terminals 1/4" Blade (2).

"A" 7". "B" 6". "C" 5". Replaces Bendix 278323N Haldex KN47001 Meritor 824000. Spline 1-1/2 - 10.

A" 6-1/2". "B" 5-1/2". "C" N/A. Replaces Bendix 278321 Haldex KN47011 Meritor 824001. Spline 1-1/2 - 10.

2 Position 5 Port SOLENOID Valve, with Manual Override. Port Size (5) 3/8" PT. Replaces Norgren K910014 Manac 023-299, 223-6197 Tectran 29-SS6M. N...

Air Brake dryer cartridge, Ad-Sp Adis type. Replacement for the following codes: Knorr-Bremse 40100F and I-85127-004. Bendix: 109994 and 5008414. A...

Turbo cut-off Valve Kit for Wabco style Dryers

PURGE VALVE KIT (REPL. WABCO)

OUTLET VALVE KIT (REPL. WABCO)

2-Position, 5-port CONTROL Valve Ports (5) 3/8" PT 1/8" Pilot. Replaces Ride-Air RA020-1. Notes: 12 Volt Solenoid operation, Spring Return. Manua...

4 Delivery Non-Charging RELAY EMERGENCY Valve, Sealco style, New 3/8" Pt Delivery (4), Supply, Supply Out & Control (2) Ports. 3/4" Pt Reserv...

Nominal Closing 60 PSI. Nominal Opening 70 PSI.

Nominal Closing 70 PSI. Nominal Opening 80 PSI.

All Ports (3) 1/4" Pt. Id Plate Included.
