Adjustable Trolley with Safety Plates - LW555

• Easily adjusts to fit various flanges, I-beams and H-beams
• Use on straight or curved track
• Can be installed or removed at any position on the beam
• Heavy-duty cast iron wheels
• Deep width flange provides superior contact with the beam
• Safety plate included
• Meets ASME B30.16

Specifications

Capacity

6000 lbs. (3 tons)

I-Beam Flange Width

3-15/16" - 5-14/16"

Manufacturer's Warranty

1 Year Limited

Net Weight

43.44 lbs.

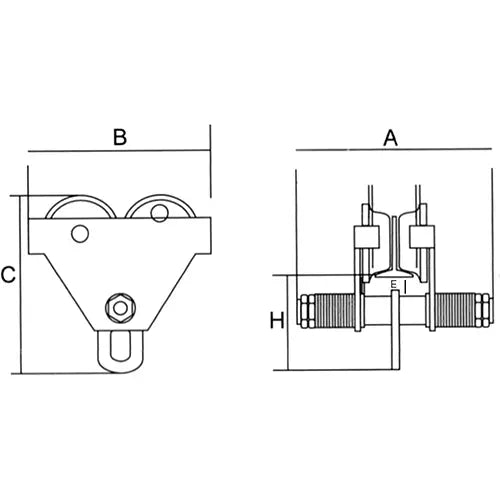

A

12"

B

12-3/8"

C

11-15/16"

E

5/16"

H

6-1/2"
