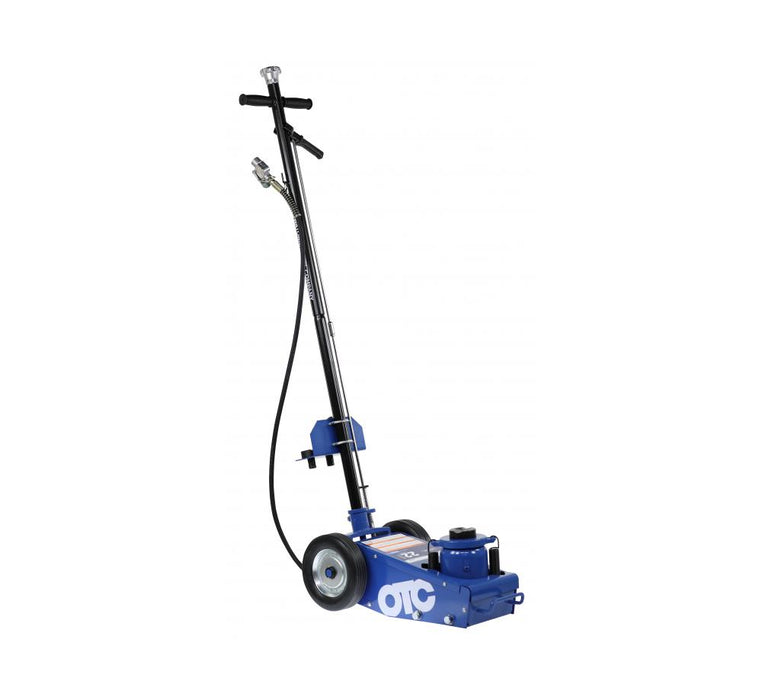

22 TON UNDER AXLE JACK

Bring the versatility of air-assist operation to your shop’s lifting tasks. Self-retracting, spring return feature with long 49-1/2" T-handle lets you easily position jack under vehicles with long overhangs. One pull of the handle activates the self-retracting 22-ton capacity ram without having to crawl underneath the vehicle. Large rubber-tired steel wheels for maneuverability and movement on most types of terrain. Three included saddle attachments for multiple height adjustments based on vehicle being lifted. 4-1/2" Cylinder stroke, 4-1/2"; 4-1/4" extended screw length. Ideal size for safely lifting heavy duty vehicles.

  • 22-ton capacity. Air pressure: 90 - 145 PSI. Lifting range: 8.27" to 20-2/3" using longest saddle. Reach: 69.87". Saddle: 3" dia., round with center notch. Includes 3 saddle lengths: Max height using ¾” saddle: 17-3/4”. Max height using 1-15/16” saddle: 18-15/16”. Max height using 3-7/8” saddle: 20-2/3”. Frame height: 8.27". Handle length: 47.24" T handle with lowering lever and air-chuck hook. Footprint: 22.63" x 11.73". Wheels: 2 fixed; 7.88" rubberized steel
