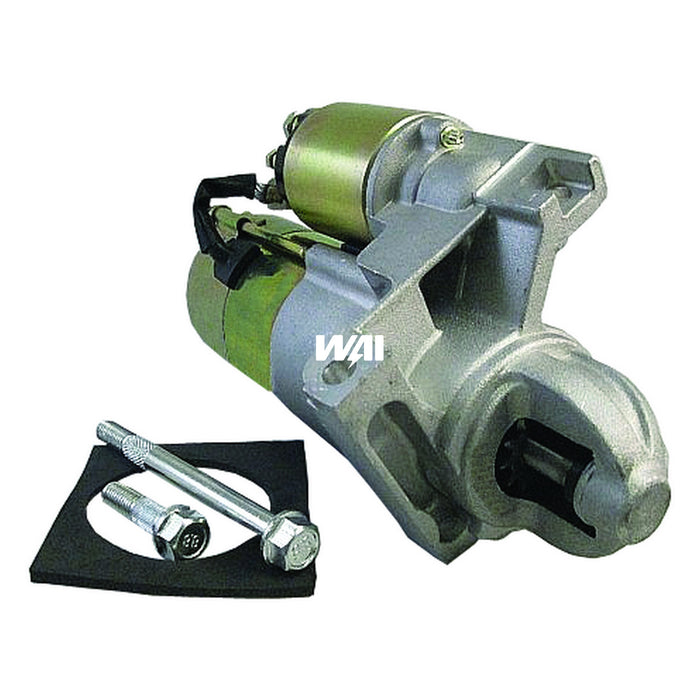

WAI 3631N-PG 002109 - Starter - Delco PG260 Series
MPN:
3631N-PG
SKU:
3631N-PG-S03-126
002109 - Starter - Delco PG260 Series
1.7kW/12 Volt, CW, 11-Tooth Pinion. SPECS FOR: Delco PG260M PMGR. MFR: DELCO. MFR SERIES: PG260M. DESIGN: PMGR. VOLTAGE: 12. KW: 1.7. ROTATION: CW. TEETH: 11. NOTE 1: This PG260M design, with 29.6 mm pinion OD is replacing 10MT / SD300 Delco starters with pinion OD 25.4. 100% New. High-performance retrofit, ideal for hi-performance, marine & street-rod applications. Mounting bolts and bell housing gasket included. 4-terminal, sealed solenoid w/ relay & switch terminals. Upgrade the old, heavy 9-tooth, 10MT design to a high output, 7.7 lbs. lightweight, 11-Tooth PG260M starter. Field case assys. are 100% tested on a computerized gaussmeter to measure magnet strength & position. Zinc plated field case, solenoid, C.E. cover & hardware. Armatures are precision balanced & Commutators are stake-welded & polished for longer brush life. Starter, drive & solenoid are endurance tested.
- Applications: Buick (1964-1987), Cadillac (1965-1984), Chevrolet (1962-1992), Chris Craft (1967-1971), Crusader (1961-1969), GMC (1963-1987), Gray (1966-1968), Jeep (1966-1971), Massey Ferguson (1967-1970), Mercruiser (1963-1978), New Idea (1965-1966), Oldsmobile (1964-1987), Pontiac (1964-1992), Studebaker (1965-1966), Teledyne (1966-1968), Universal (1963-1964)
- OE Numbers: Delco 10496870, 1107340, 1107352, 1107367, 1107385, 1108320, 1108326, 1108327, 1108331, 1108351, 1108354, 1108371, 1108381, 1108392, 1108420, 1108433, 1108490, 1108497, 1108499, 1108504, 1108507, 1108521, 1108743, 1108760, 1108763, 1108768, 1108789, 1108791, 1109024, 1109038, 1109041, 1109062, 1109063, 12304203, 1894140, 19136156, 1988602, 1988711, 1998227, GM 1108789, 1109063, 1988602, 1988711
- Lester Numbers: 3631, 6789
MPN: 3631N-PG
