WAI 6359N-PT 002101 - Starter - Delco 37MT Series

by WAI

MPN: 6359N-PT
SKU: 6359N-PT-S03-126

$691.32 - $691.32

$691.32

$750.43

$750.43 - $750.43

$750.43

Warehouse: Calgary-A

This product is held in stock at the Calgary-A warehouse. Shipping & pick-up available.

Order now and pick up Tomorrow after 2 p.m.

5935 35 St SE, Bay #15, Calgary, AB, T2C 2H1, Canada

Availability:

Only 2 left!

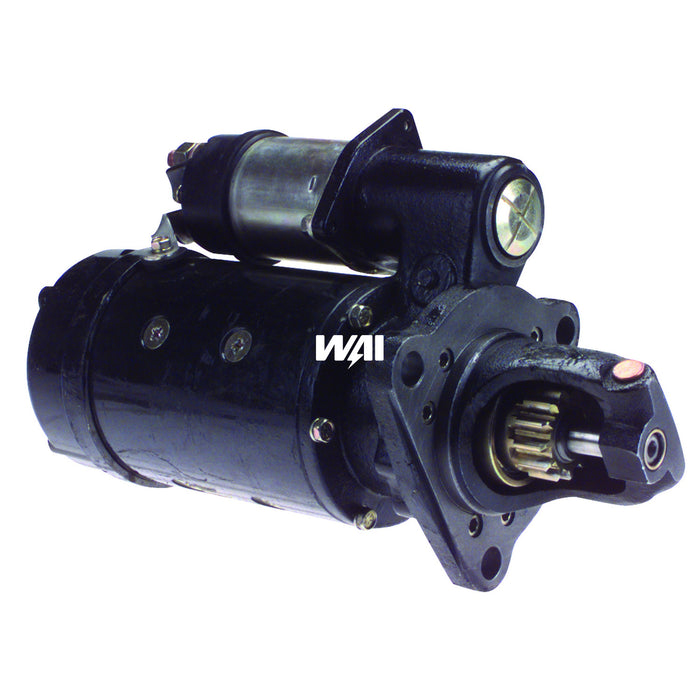

002101 - Starter - Delco 37MT Series

24 Volt, CW, 12-Tooth Pinion. SPECS FOR: Delco 37MT DD. MFR: DELCO. MFR SERIES: 37MT. DESIGN: DD. VOLTAGE: 24. ROTATION: CW. TEETH: 12. NOTE 1: Also replaces Delco 35MT 1113403, 1113536. NOTE 2: 41MT solenoid, 100% tested for coil strength, voltage drop across contacts and 'reserve burnoff' on the contacts. NOTE 3: 100% computerized load tested. NOTE 4: 5/8" Mounting Holes, use three 76-1200 mounting bushings when replacing units with 1/2" mounting holes. 100% New. Heavy duty positive engagement solution for 37MT starters. Eliminates the milling and stop ring & collar failure common on the 37MT design. Solenoid positioned at 308 degrees. 41MT positive engagement drive. 41MT armature with heat treated shaft and welded steel-core riserless commutator. Varnish dipped field coils. Ductile iron D.E. housing. Painted gloss black with zinc plated hardware.

Applications: Case (1959-1988), Caterpillar Ag. & Ind. (1985-1986), Champion (1989-1998), Clark (1985-1986), Consolidated Diesel (1991-1992), Cummins Engines (1983-1988), David Brown (1971-1978), Dresser (1990-2003), Drott Mfg. (1971-1978), Lister-Petter (1986-1988), Waukesha (1975-1990)
OE Numbers: Case 104213A2, A170678, L106562, L79906, R26136, R40563, R42828, R46156, R47368, Caterpillar 9L2507, Cummins 3675117RX, 3675119RX, 3910644, Delco 10461016, 10461018, 10479175, 10479196, 1113403, 1113479, 1113481, 1113486, 1113534, 1113535, 1113536, 1113584, 1113585, 1990330, 1990332, 1993707, 1993721, 1993729, 1993732, 1993742, 1993861, 1993901, 1993902, 1993906, 1993909, 1993910, 1993911, 1993920, 1993953, Leece Neville MS3-500, Onan 1912038, Prestolite MS3-500
Lester Numbers: 4997, 6240, 6241, 6291, 6292, 6293, 6354, 6358, 6359

MPN: 6359N-PT
