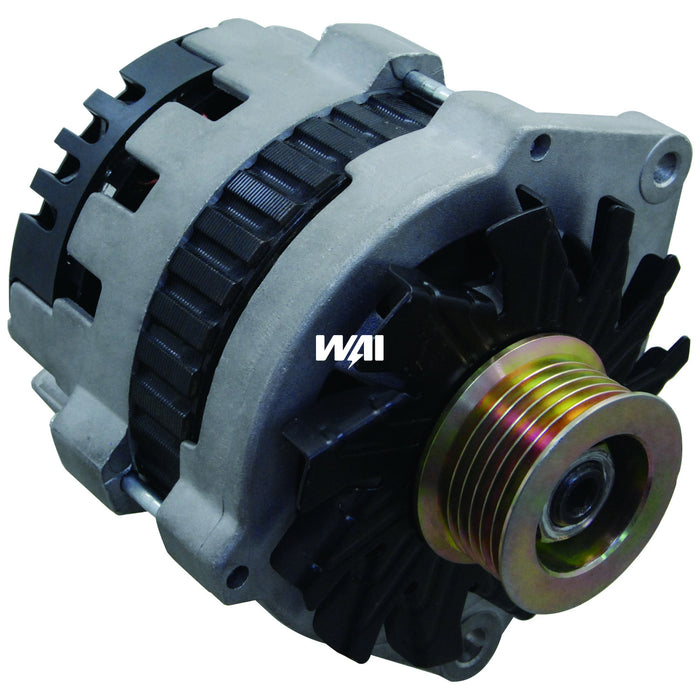

WAI 8171N 001108 - Alternator - Delco CS130 Series

by WAI

MPN: 8171N
SKU: 8171N-S03-126

Sold out

$230.34 - $230.34

$230.34

$250.03

$250.03 - $250.03

$250.03

Warehouse: Calgary-A

This product is held in stock at the Calgary-A warehouse. Shipping & pick-up available.

Order now and pick up Tomorrow after 2 p.m.

5935 35 St SE, Bay #15, Calgary, AB, T2C 2H1, Canada

Availability:

Out of stock

105 Amp/12 Volt, CW, 6-Groove Pulley, 07: 00 Plug Clock. SPECS FOR: Delco CS130 Series IR/EF. MFR: DELCO. MFR SERIES: CS130. DESIGN: IR/EF. VOLTAGE: 12. AMPERAGE: 105. ROTATION: CW. PLUG CLOCK: 07: 00 Plug Clock. PLUG CODE: 310. PULLEY CLASS: S6. PULLEY NOTE: 52mm OD. NOTE 2: Neg. Grd. 100% New. OE performance output curve. WAI-Transpo premium rectifier featuring press-fit avalanche diodes. WAI-Transpo premium regulator with 20A MOSFET field transistor. Premium, hi-temperature WBD bearings. Hi-temperature class-H windings. Precision CNC machined castings.

Applications: Buick (1990-1996), Chevrolet (1994-1996), Oldsmobile (1990-1996), Pontiac (1994-1995)
OE Numbers: Delco 10463411, 10463643, 10480025, 10480181, GM 10463411, 10463643, 19152475
Lester Numbers: 8171-7

MPN: 8171N
