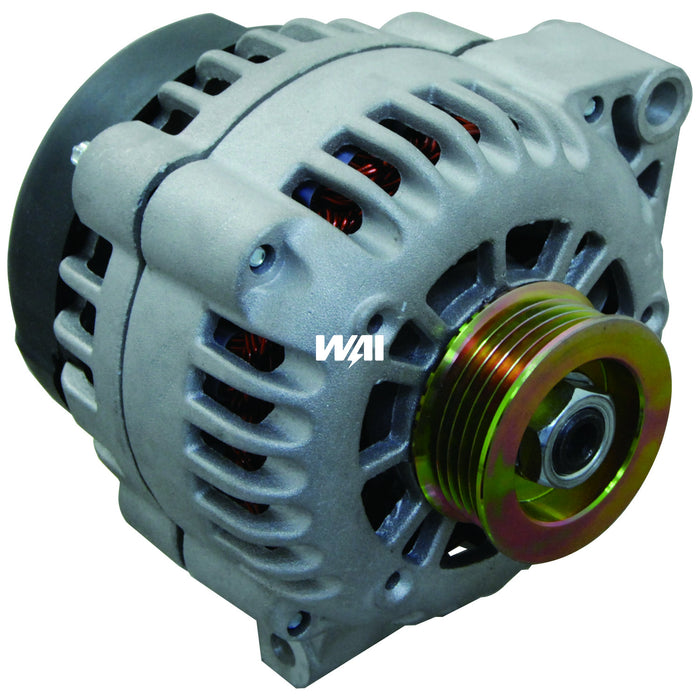

WAI 8197N 001109 - Alternator - Delco CS130D Series

by WAI

MPN: 8197N
SKU: 8197N-S03-126

$249.41 - $249.41

$249.41

$270.74

$270.74 - $270.74

$270.74

Warehouse: Calgary-A

This product is held in stock at the Calgary-A warehouse. Shipping & pick-up available.

Order now and pick up Tomorrow after 2 p.m.

5935 35 St SE, Bay #15, Calgary, AB, T2C 2H1, Canada

Availability:

Only 2 left!

001109 - Alternator - Delco CS130D Series

105 Amp/12 Volt, CW, 5-Groove Pulley, 07: 00 Plug Clock. SPECS FOR: Delco CS130D IR/IF. MFR: DELCO. MFR SERIES: CS130D. DESIGN: IR/IF. VOLTAGE: 12. AMPERAGE: 105. ROTATION: CW. PLUG CLOCK: 07: 00 Plug Clock. PLUG CODE: 314. PULLEY CLASS: S5. 100% New. OE performance output curve. WAI-Transpo premium rectifier featuring press-fit avalanche diodes. WAI-Transpo premium regulator with 20A MOSFET field transistor. Premium, hi-temperature WBD bearings. Hi-temperature class-H windings. Precision CNC machined castings.

Applications: Buick (1996-1998), Chevrolet (1996-1998), Oldsmobile (1996-1998), Pontiac (1996-1998)
OE Numbers: Bosch 0 986 UN0 633, Delco 10463638, 10480079, GM 10463638, 10464411, 10464432, 10480362, 19244788
Lester Numbers: 8197-7

MPN: 8197N
