Adjustable Trolley with Safety Plates - LW557

• Easily adjusts to fit various flanges, I-beams and H-beams
• Use on straight or curved track
• Can be installed or removed at any position on the beam
• Heavy-duty cast iron wheels
• Deep width flange provides superior contact with the beam
• Safety plate included
• Geared trolleys include two geared wheels operated by hand chain
• Meets ANSI B30.11

Specifications

Capacity

1000 lbs. (0.5 tons)

I-Beam Flange Width

2-5/16" - 4-14/16"

Manufacturer's Warranty

1 Year Limited

Net Weight

24.25 lbs.

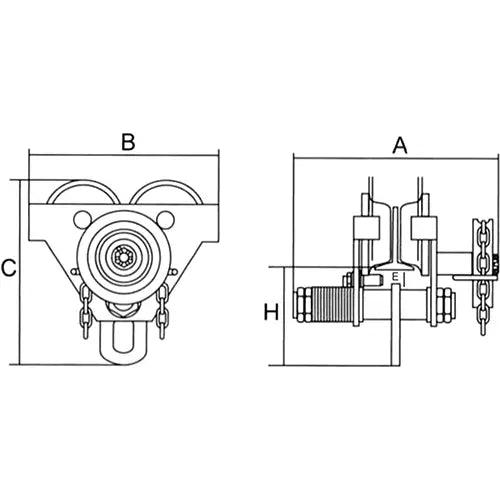

A

9-5/16"

B

8"

C

7-3/8"

E

7/8"

H

4-7/16"
